Heating plant, Nikola Tesla Airport, Belgrade
Industrial facilities
Information
Investor: Vinci Terna Construction, Belgrade Location: Nikola Tesla Airport, Serbia Year: 2021 Area: 700 m2Details about the works
Scope of work:
- Fabrication and installation of the steel structure - 65 t
- Installation of R FTV façade panels - 985 m²
- Installation of PIR roof panels - 870 m²
- Complete metalworking and locksmith works
Description

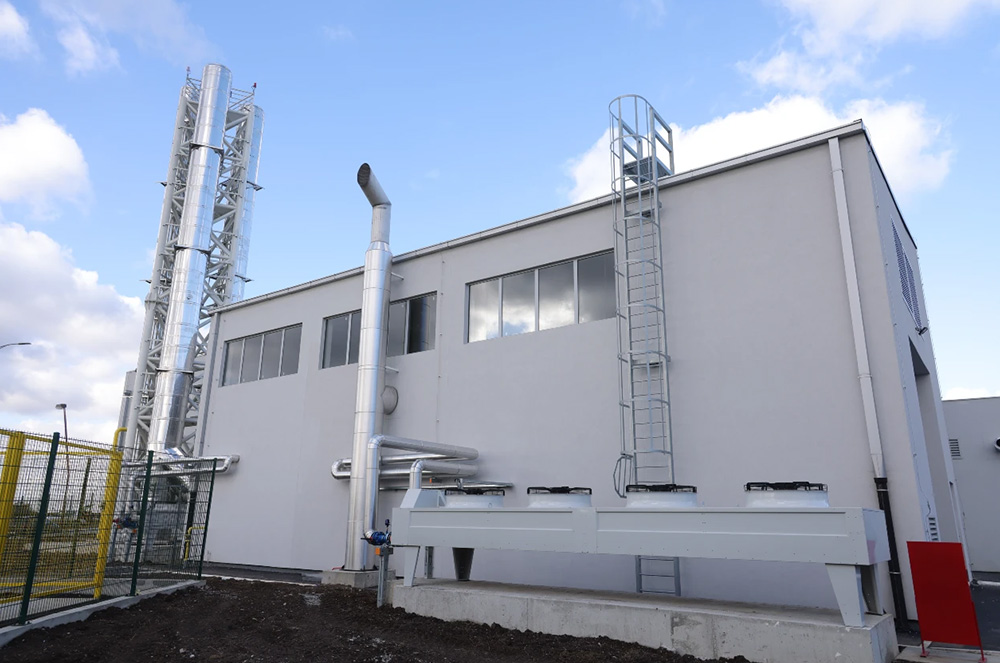

The new boiler room facility has a footprint of 39 x 18 m and a ridge height of 10 m.

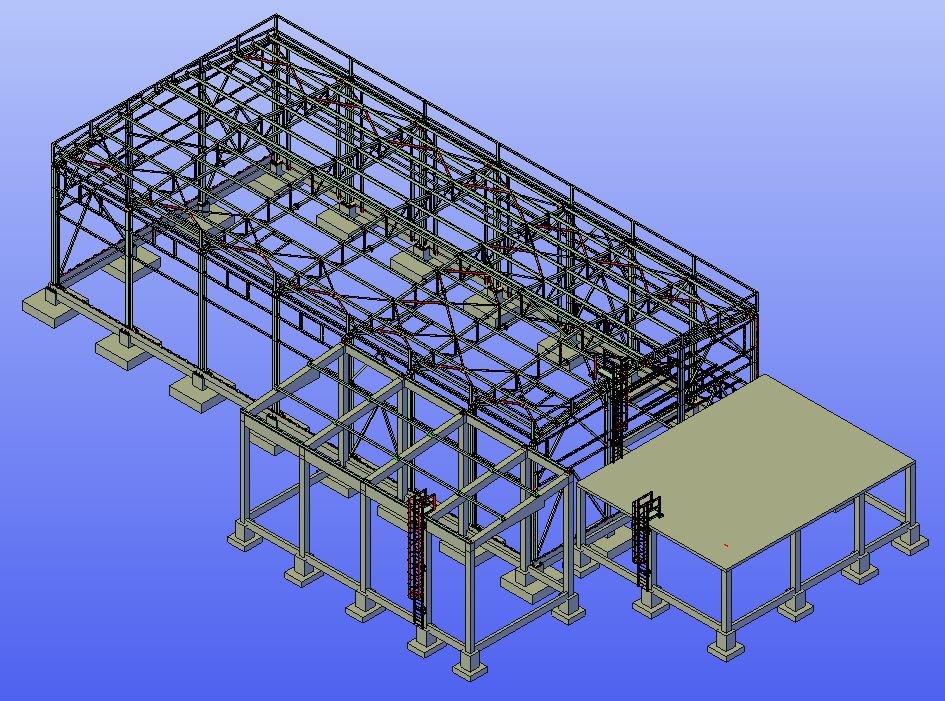

The primary load-bearing system consists of columns connected by planar lattice girders.
Anticorrosive protection was carried out using alkyd coatings with a total thickness of 130 microns. The main structural elements were additionally protected with fire-resistant coating rated for 30 minutes, except for the columns, which are protected for 60 minutes.
