Sports Hall Master, Zemun, Serbia

Details about the works

Scope of work:

• Production and installation of the steel structure of the building – 70 t

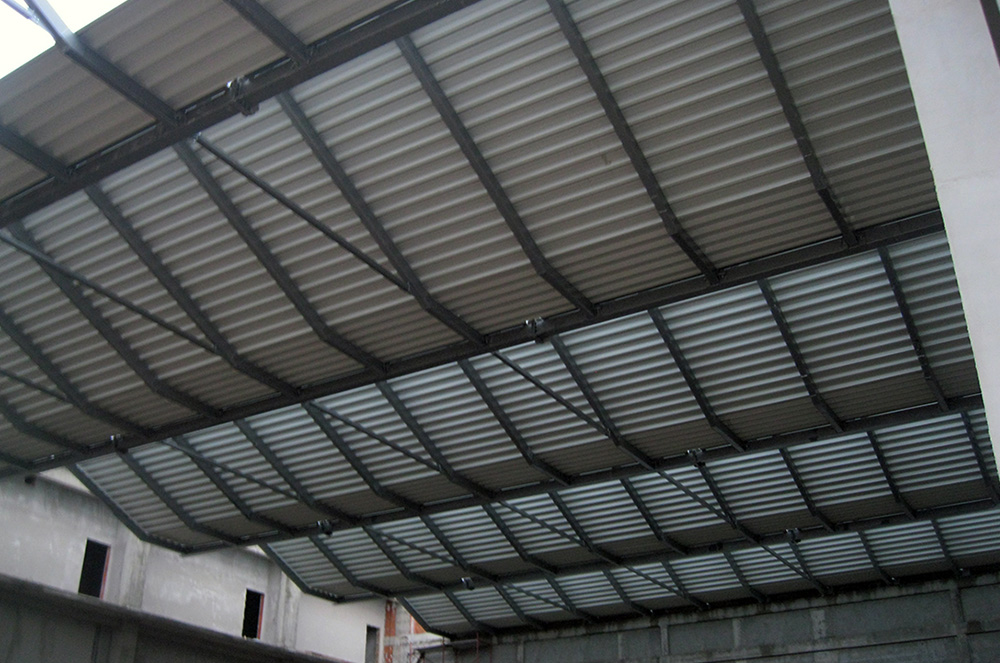

• Installation of roof trapezoidal sheets – 1,700 m²

Specifics:

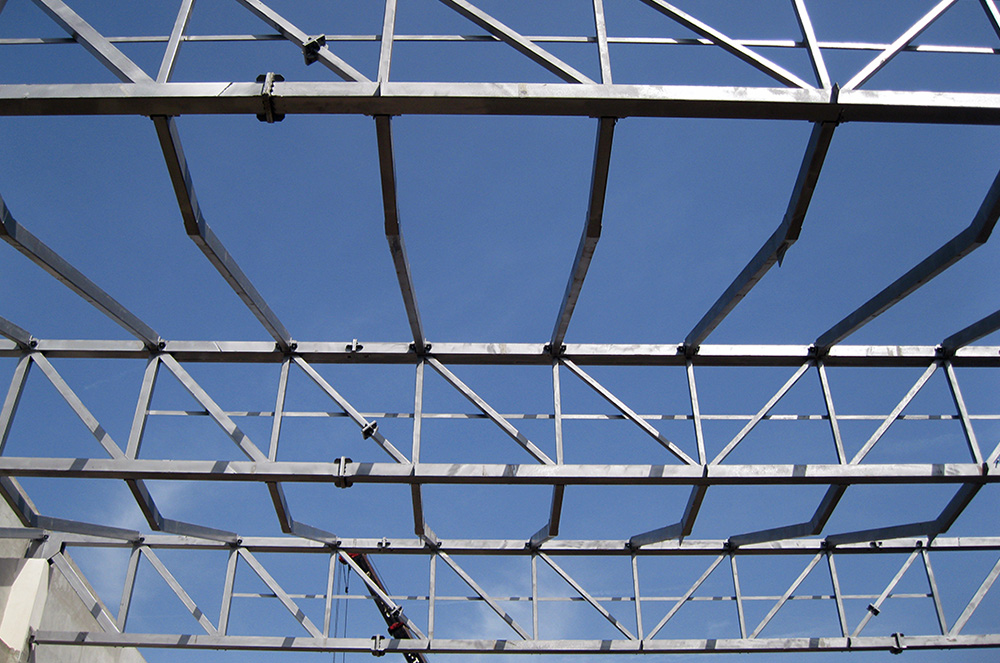

• Sawtooth / shed-type roof structure.

Description

The building has a rectangular base with dimensions of 43 x 30 m, a ridge height of 12.8 m, and a clear height of 9.7 m.

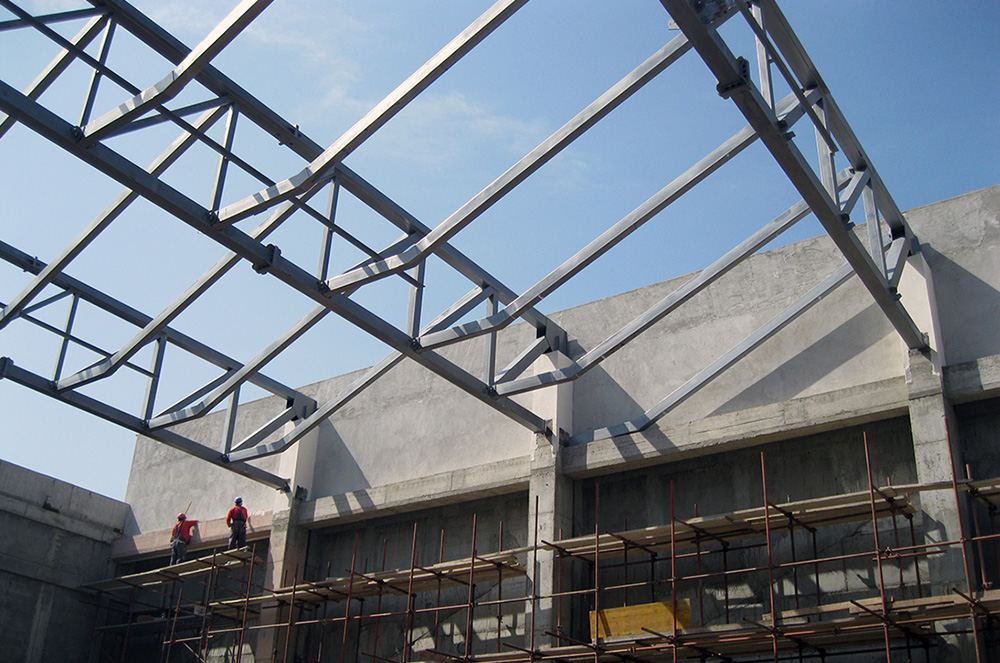

The structural system of the building is complex (combined steel–concrete), with the steel part assigned to the roof structure, which consists of transverse planar lattice girders with a span of 30 m, placed at intervals of 8 m.

The anticorrosive protection was carried out using alkyd coatings, with the main load-bearing structure additionally protected with a fireproof coating providing 30 minutes of fire resistance.
